Home Target Compound Bows Concept XTS 37

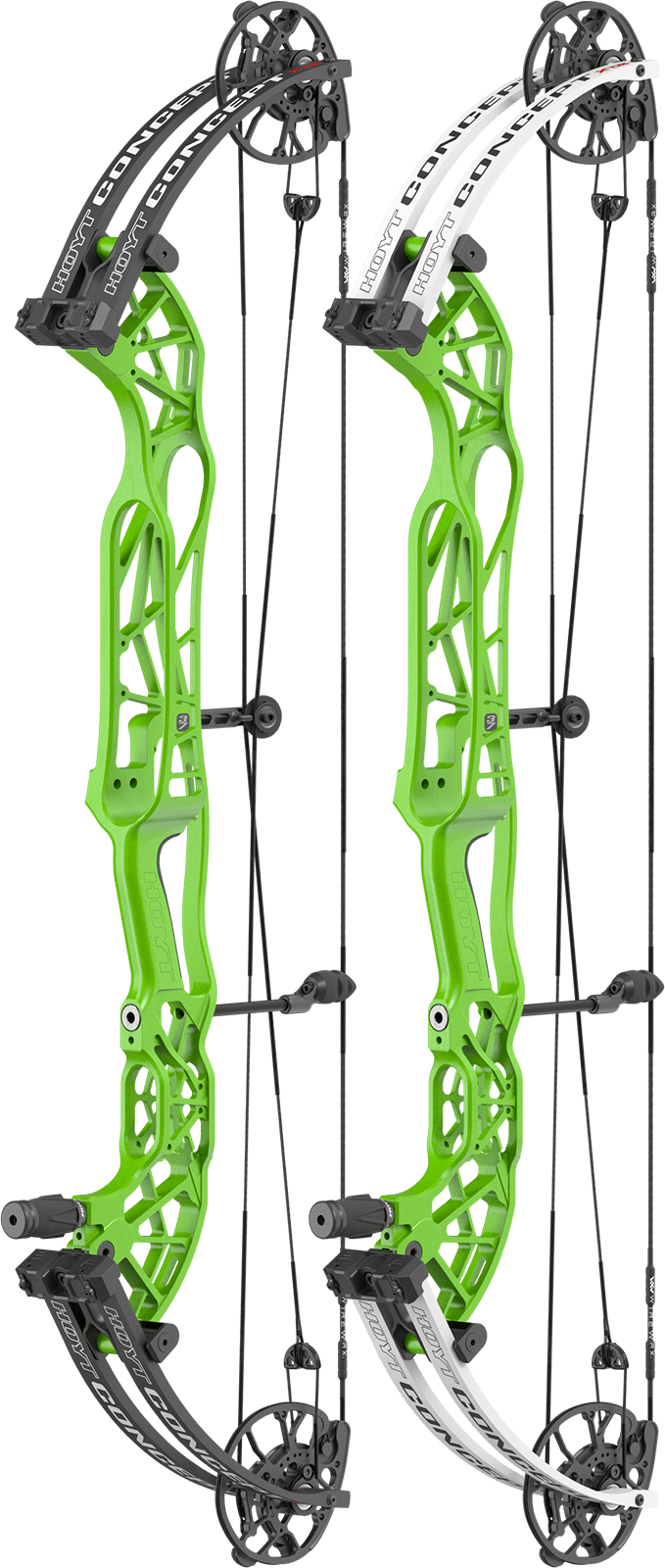

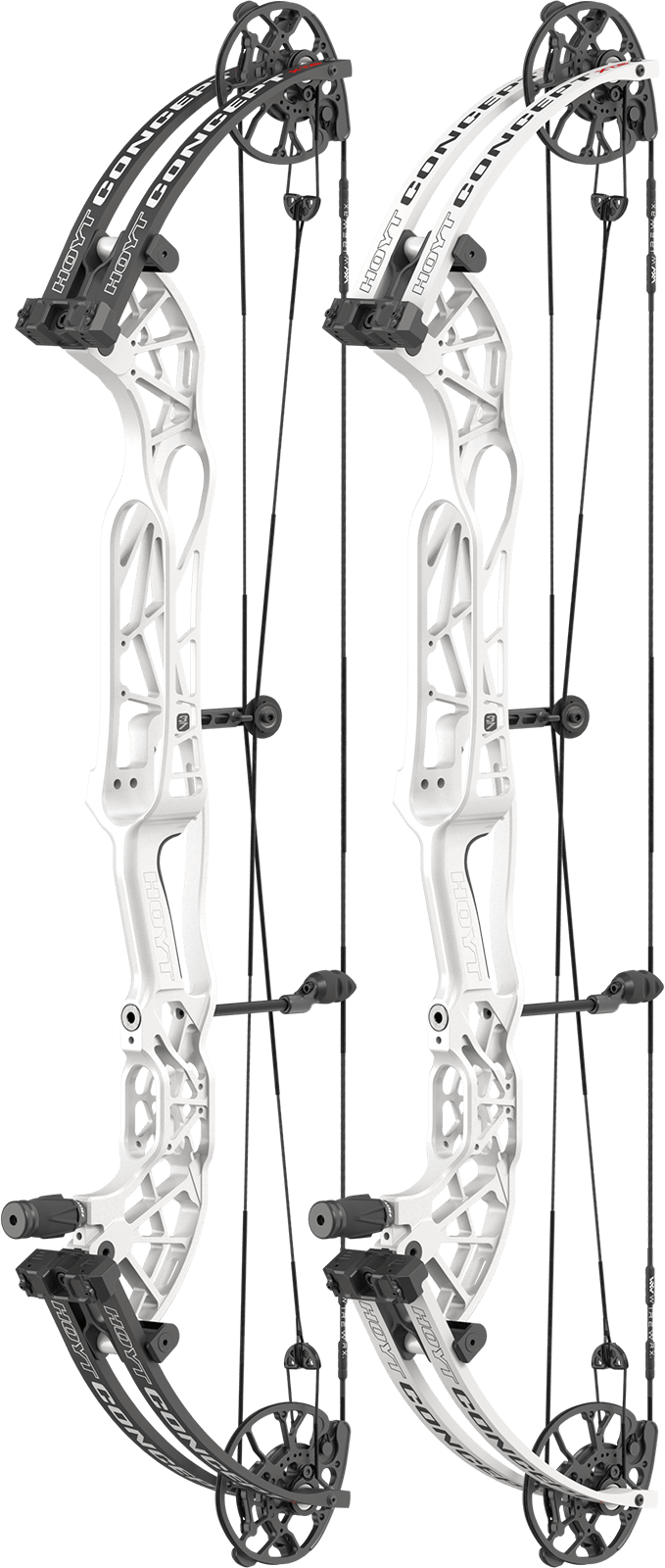

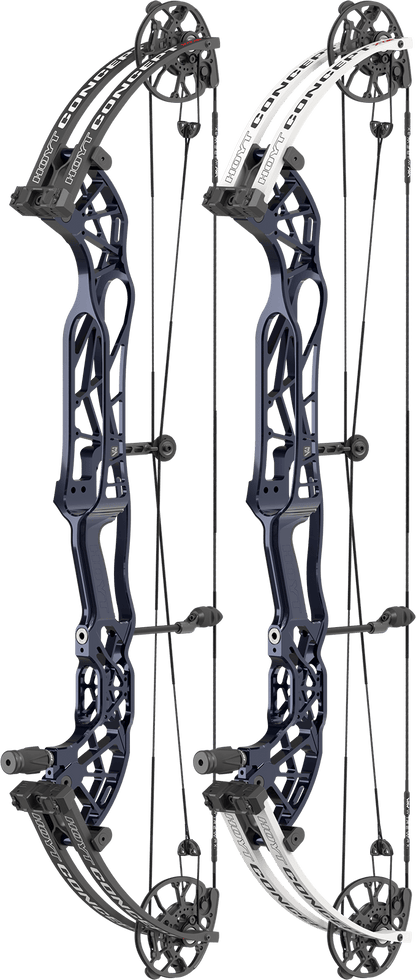

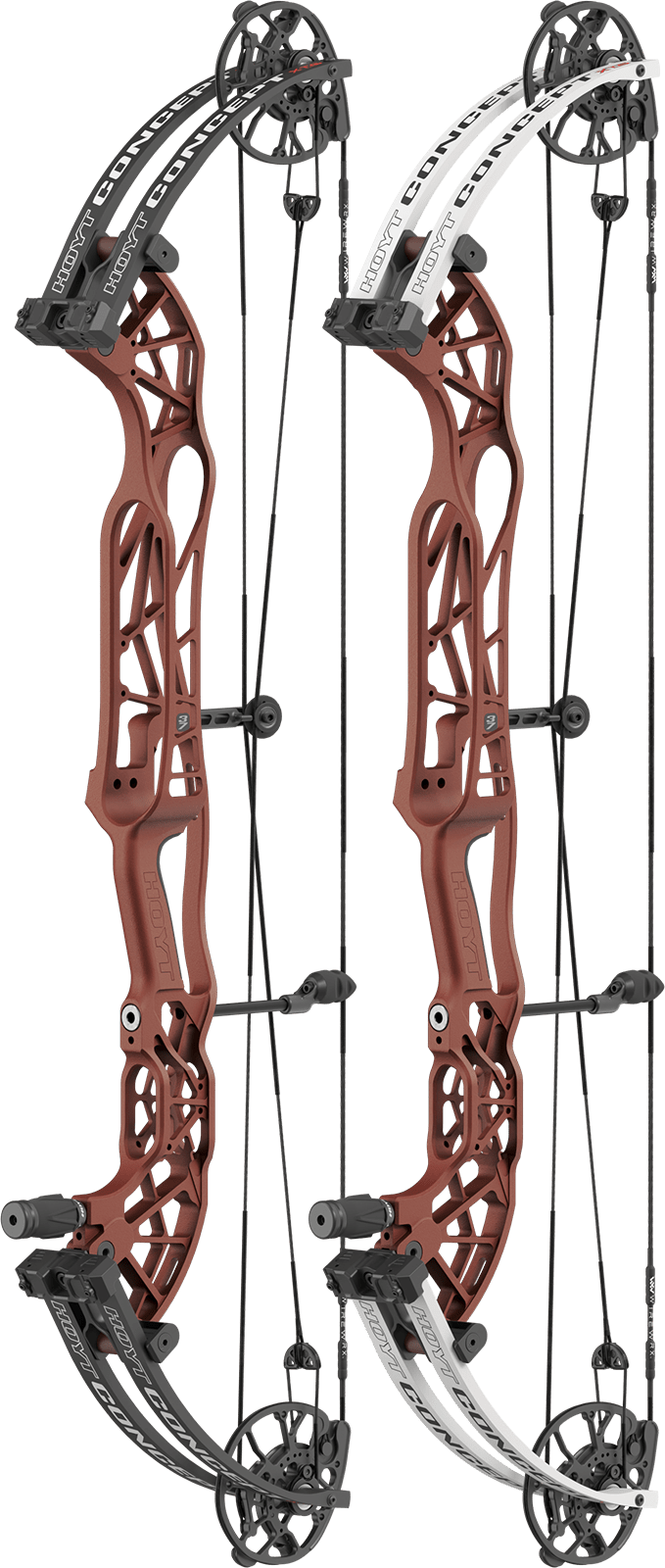

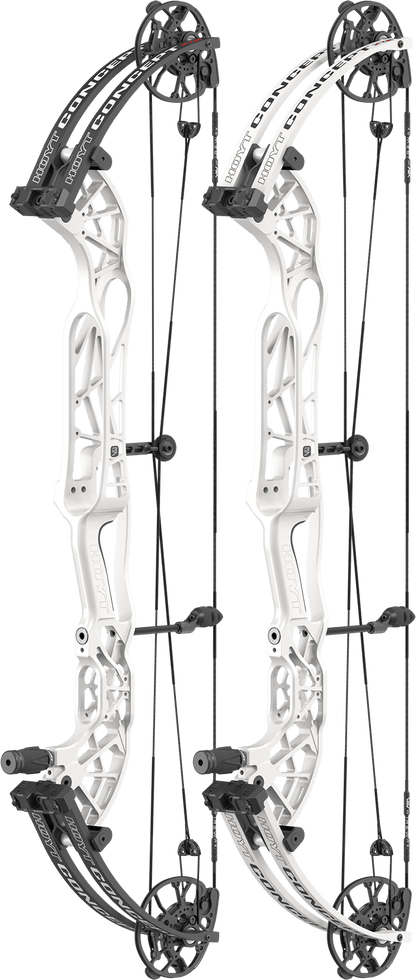

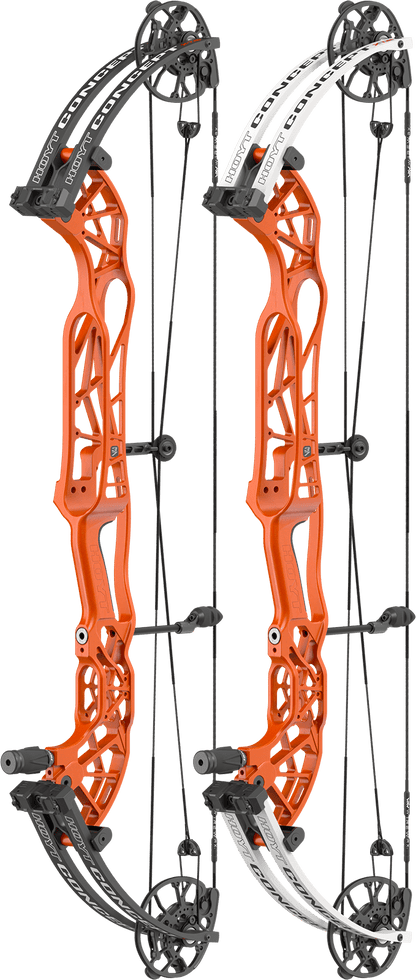

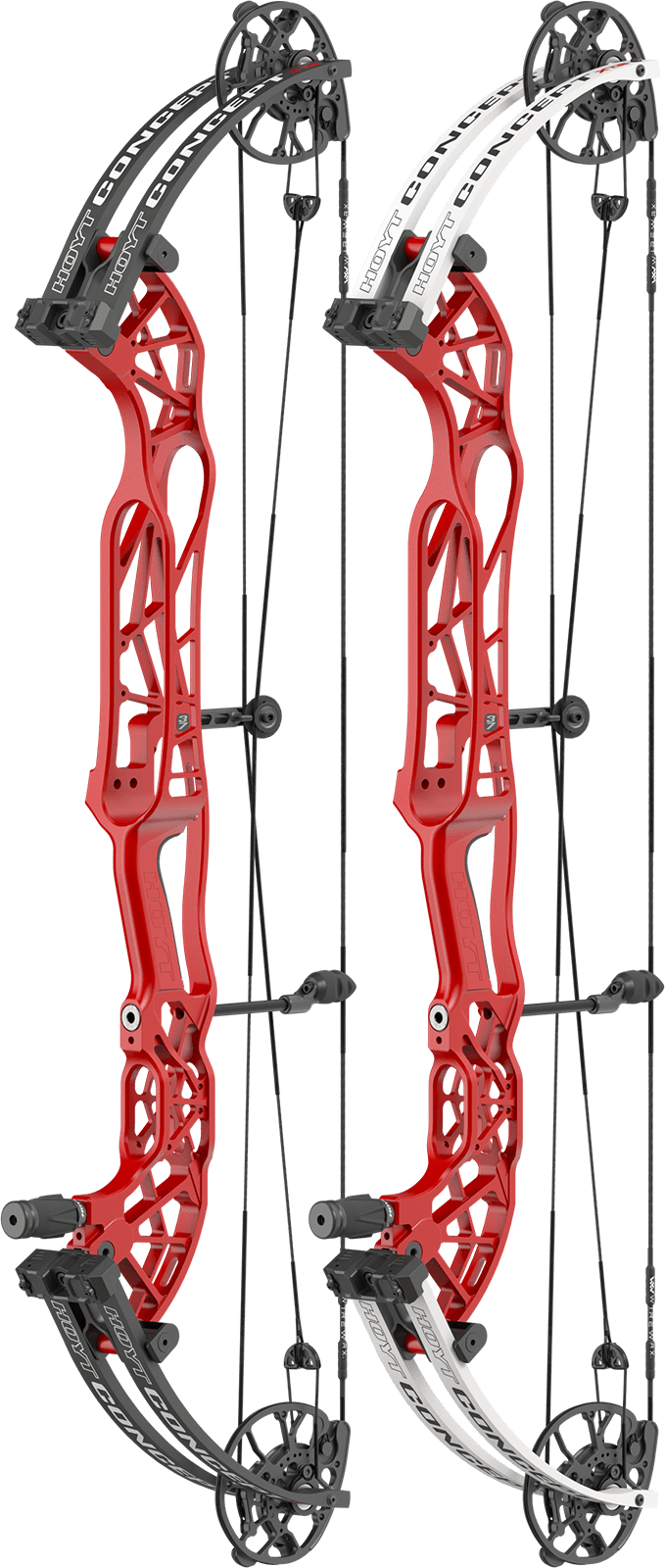

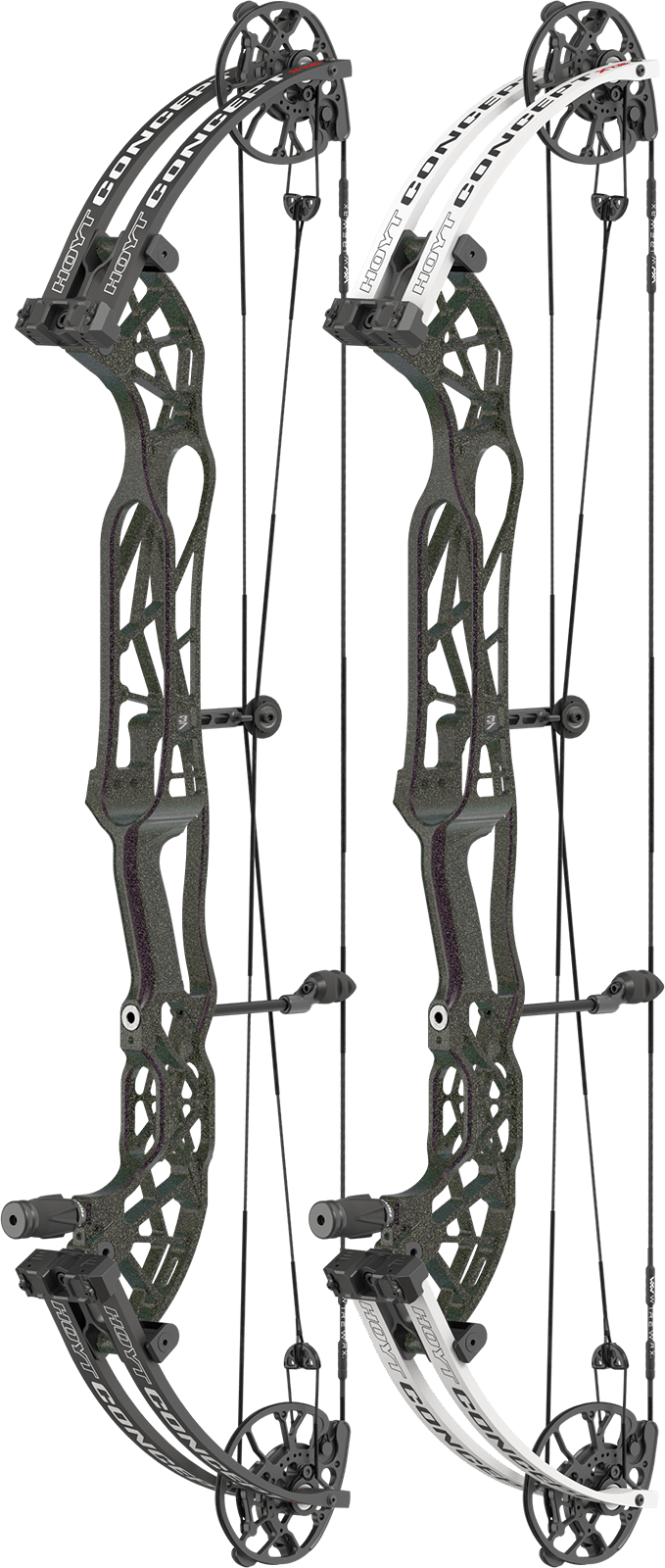

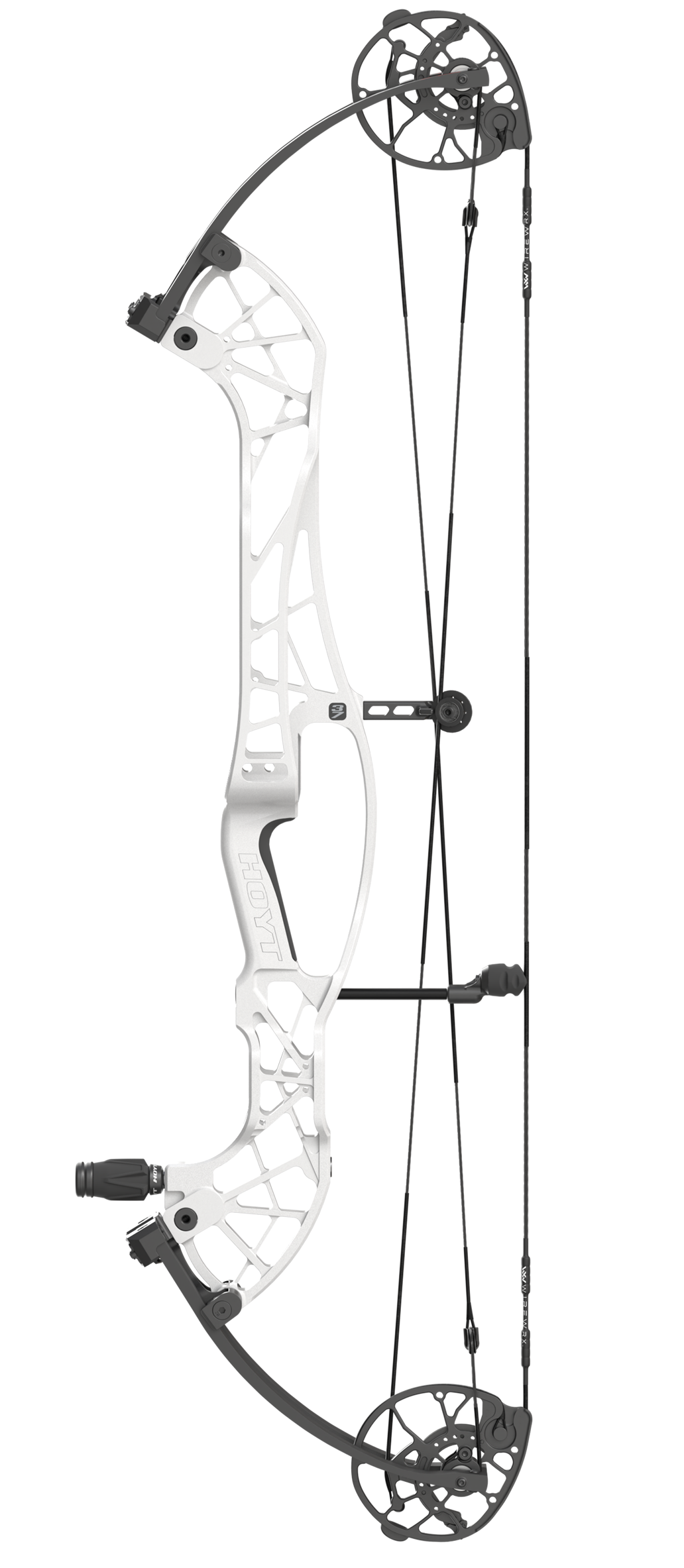

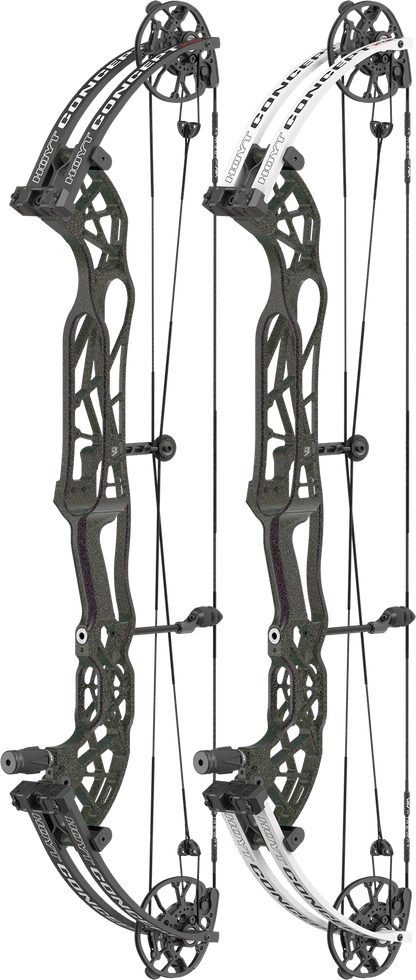

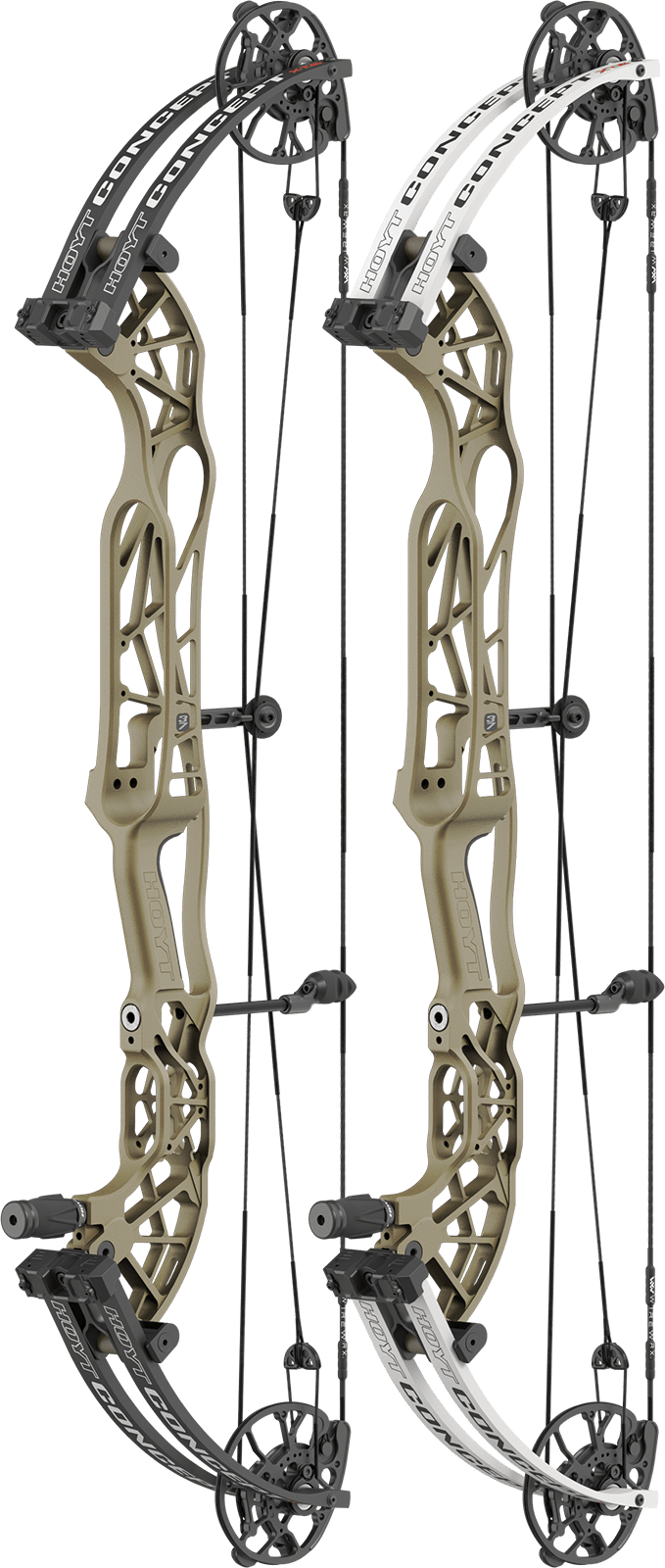

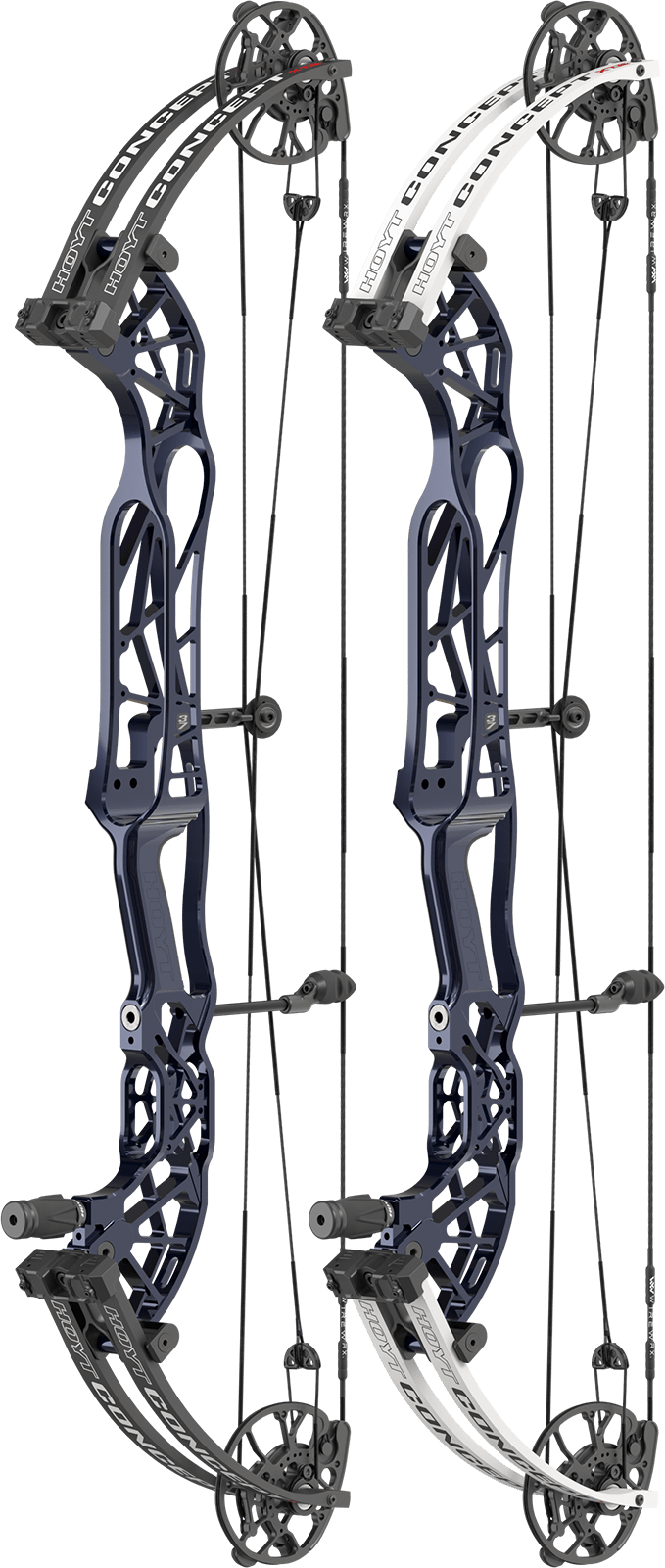

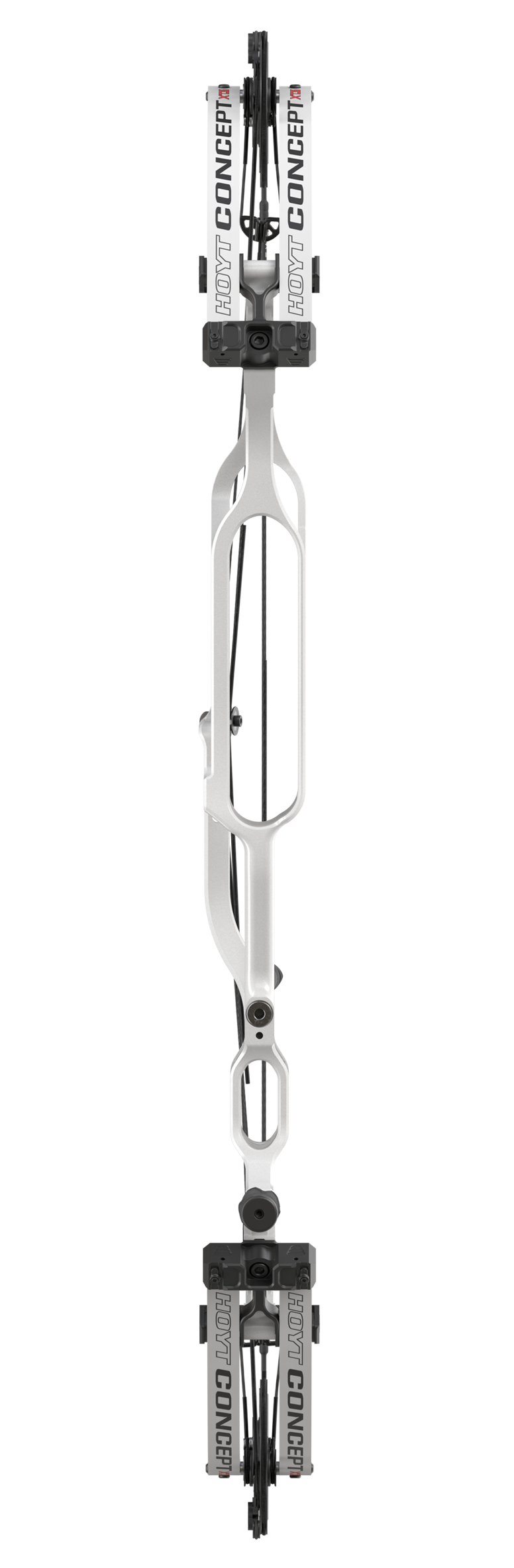

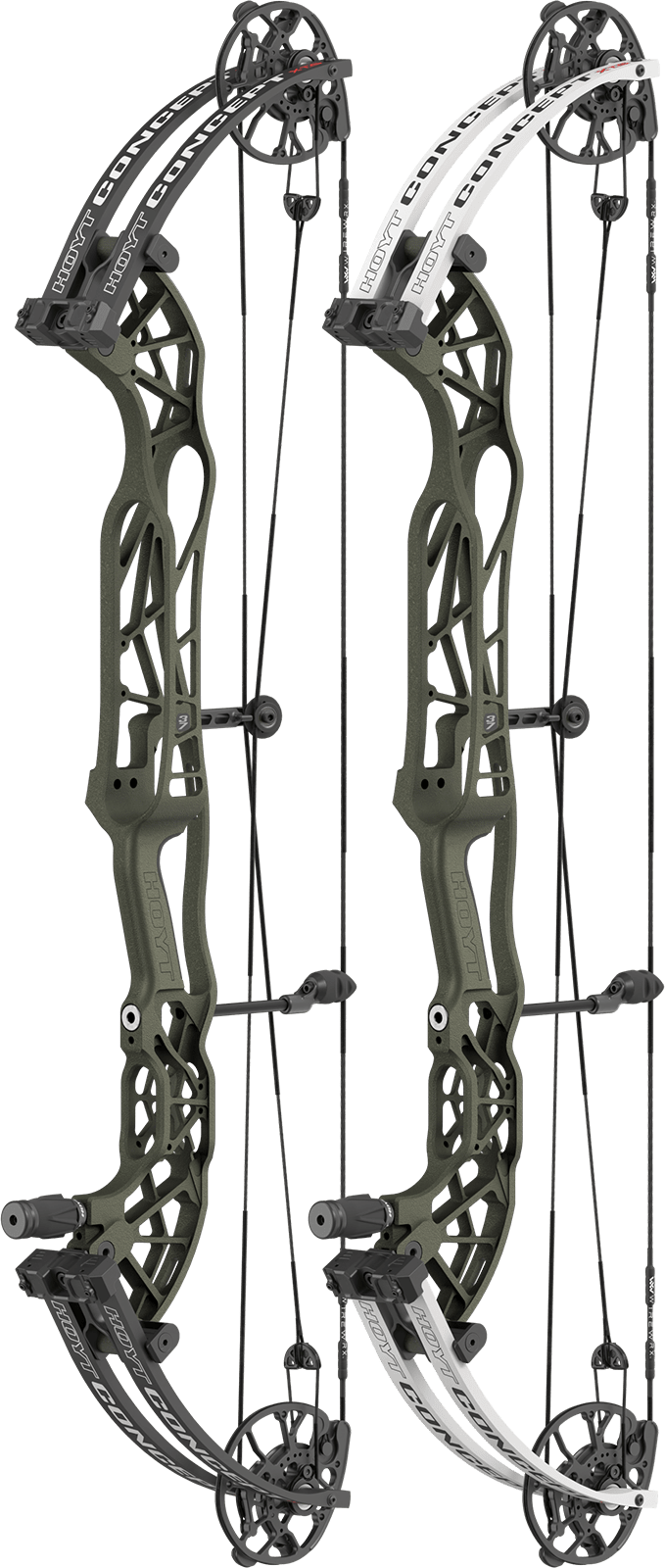

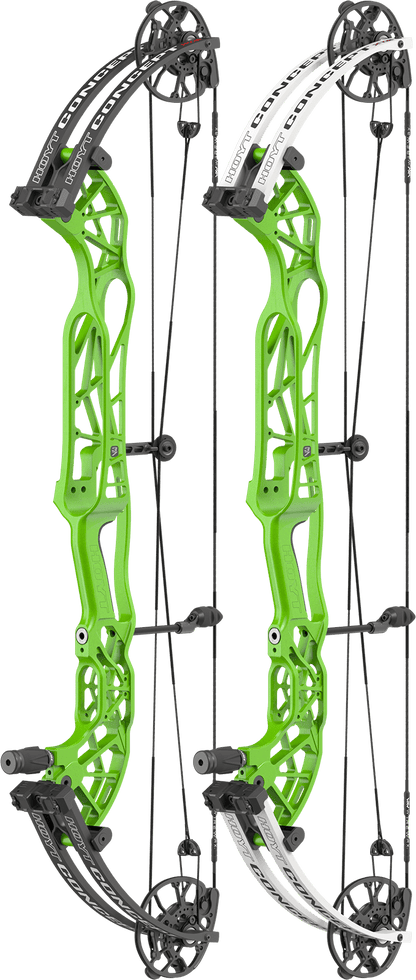

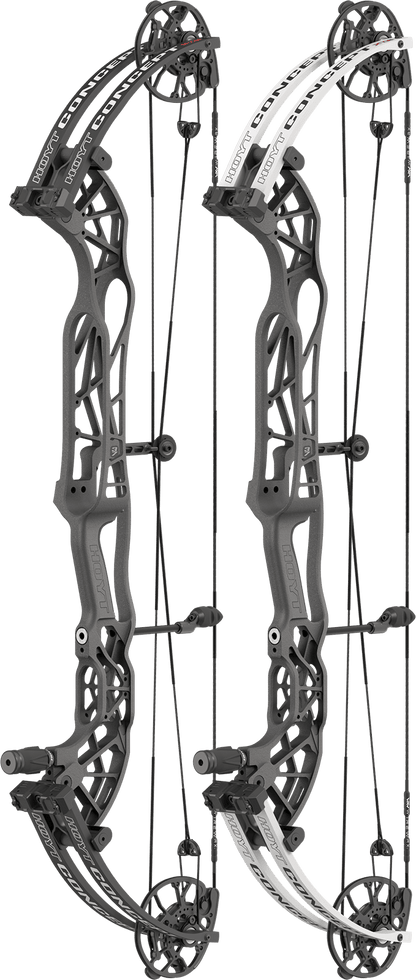

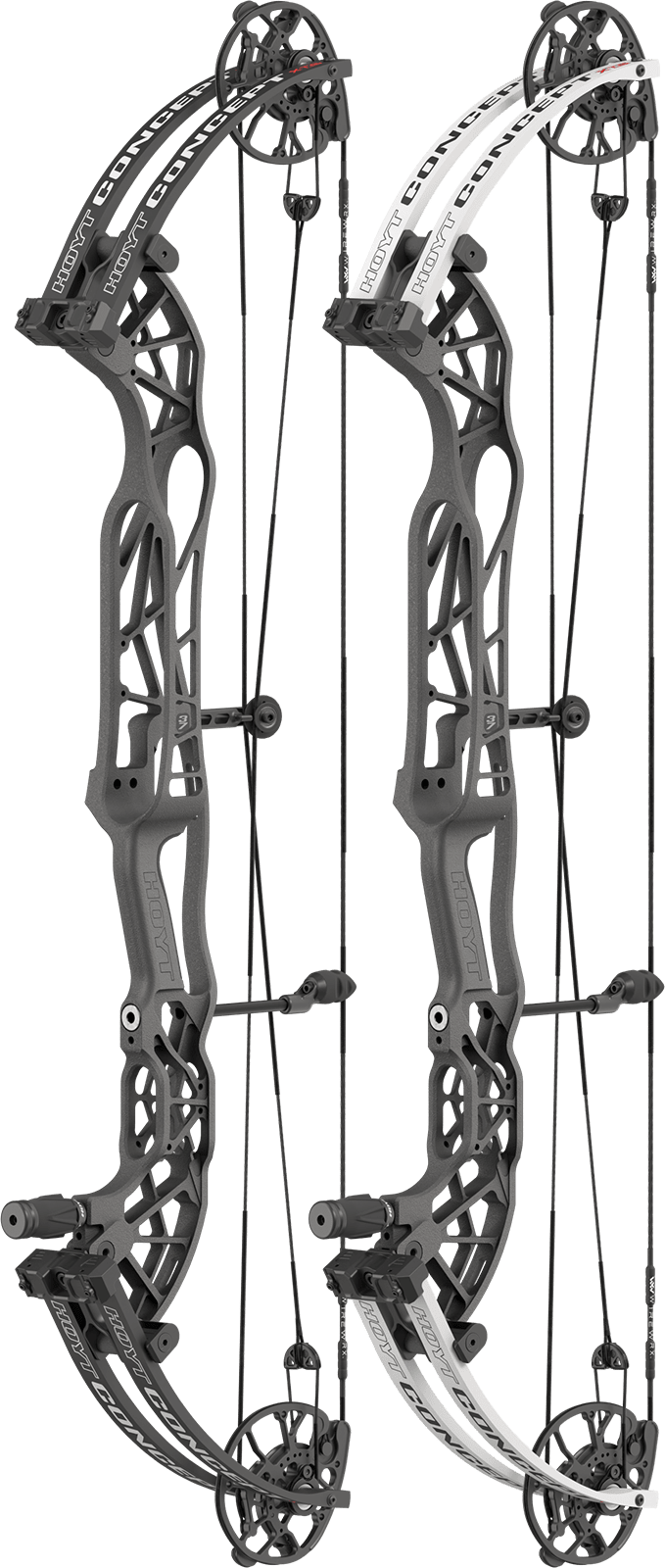

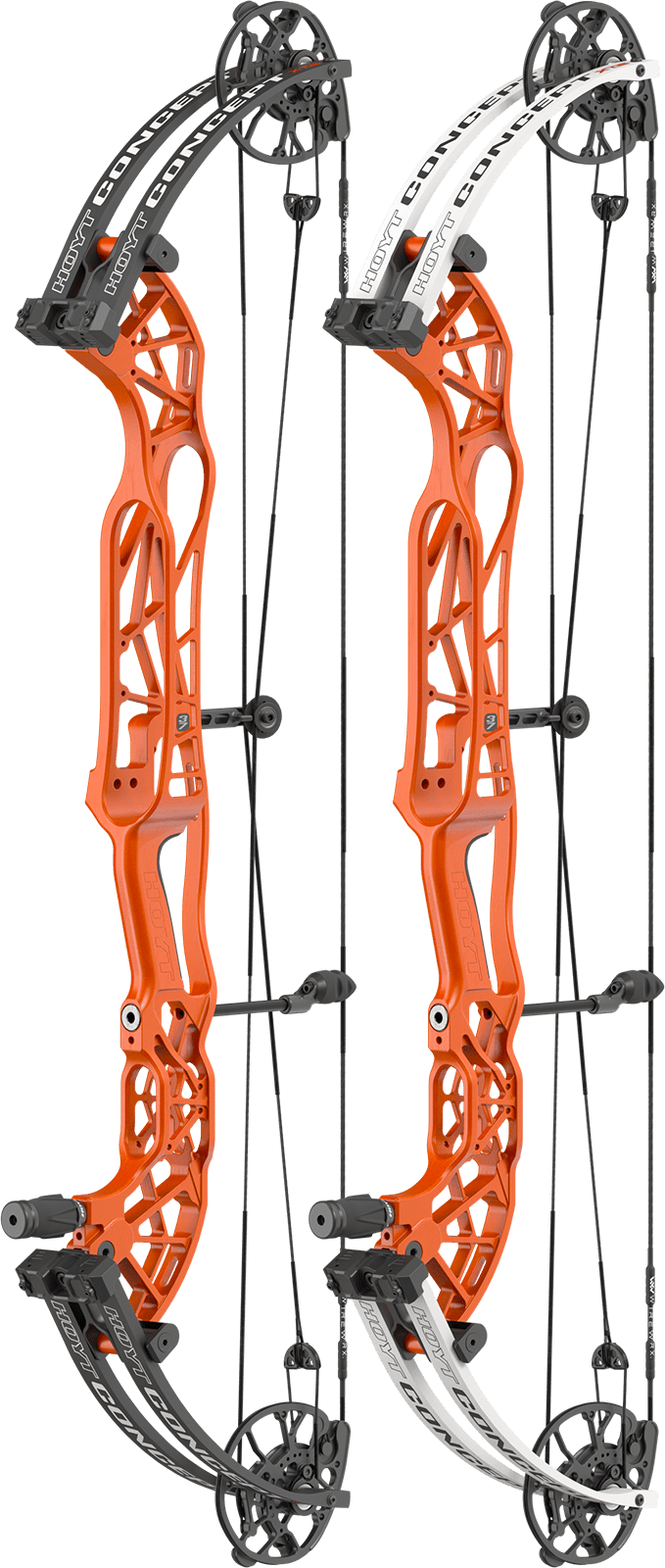

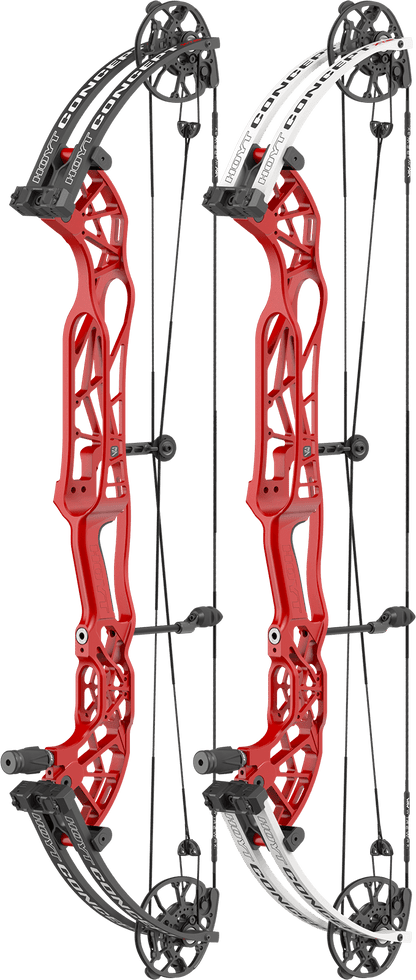

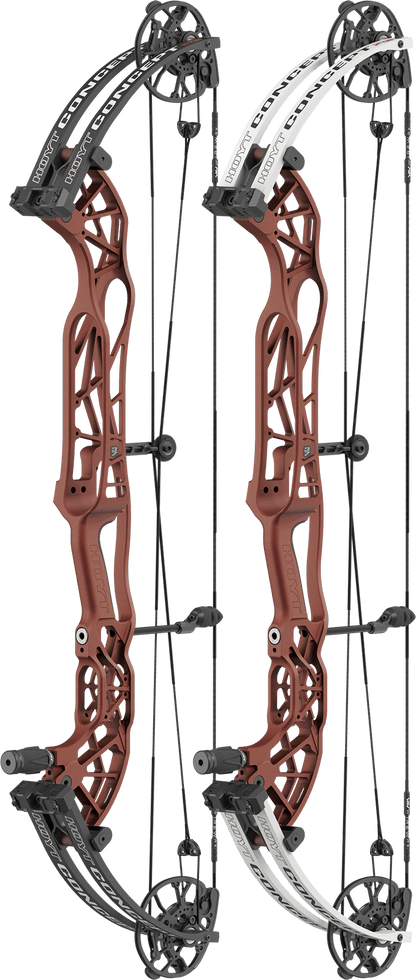

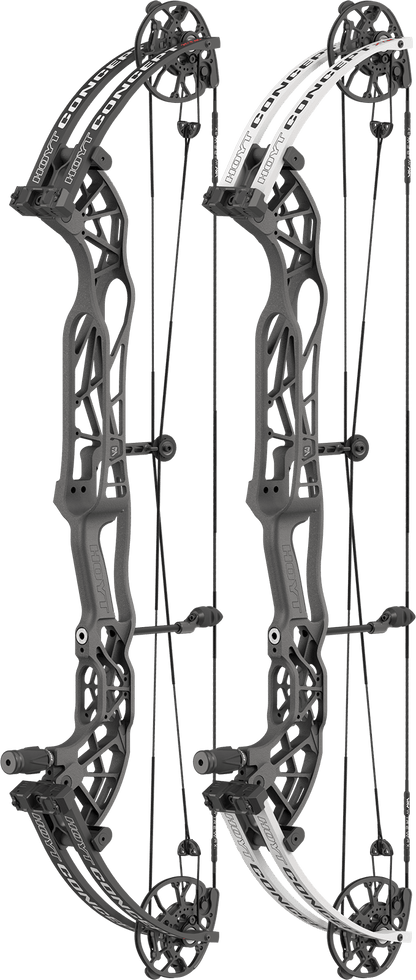

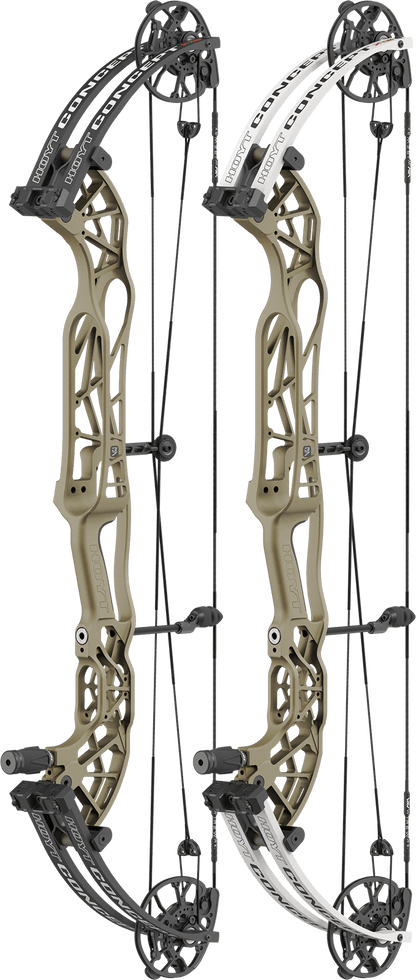

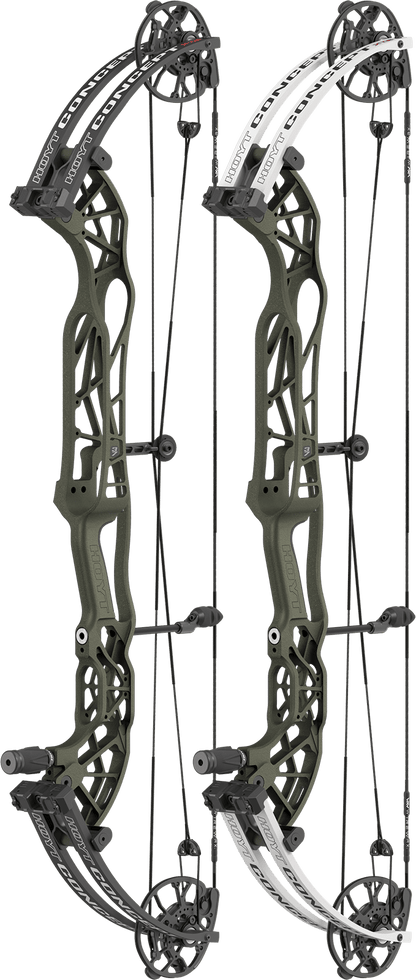

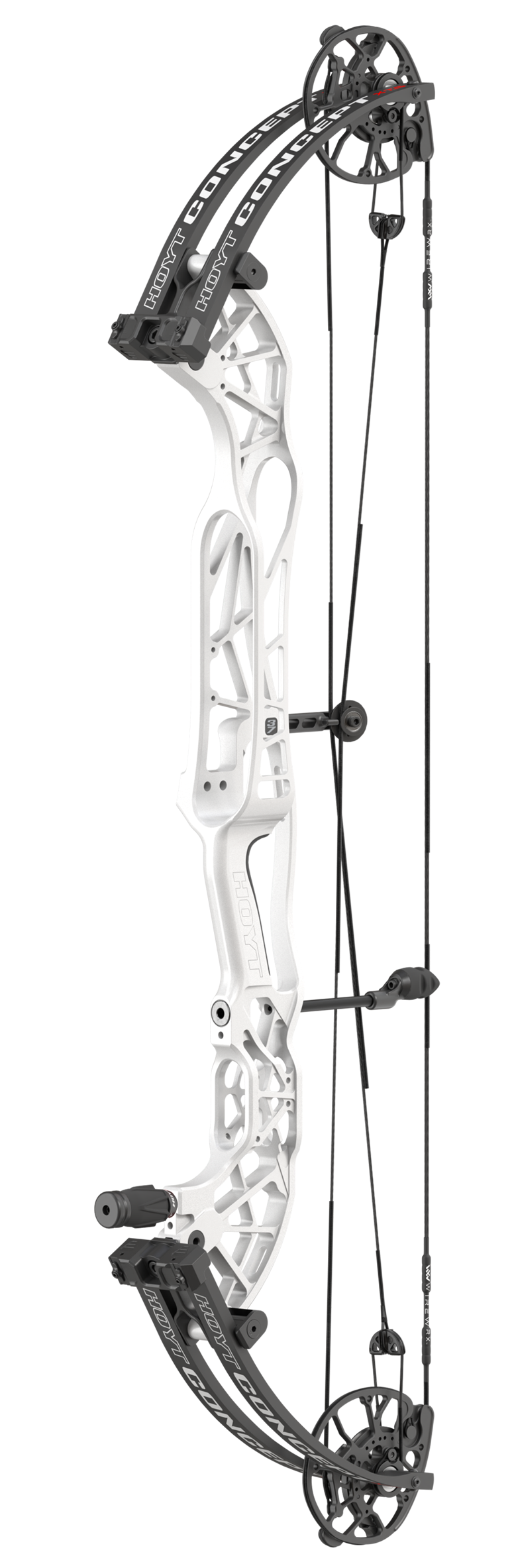

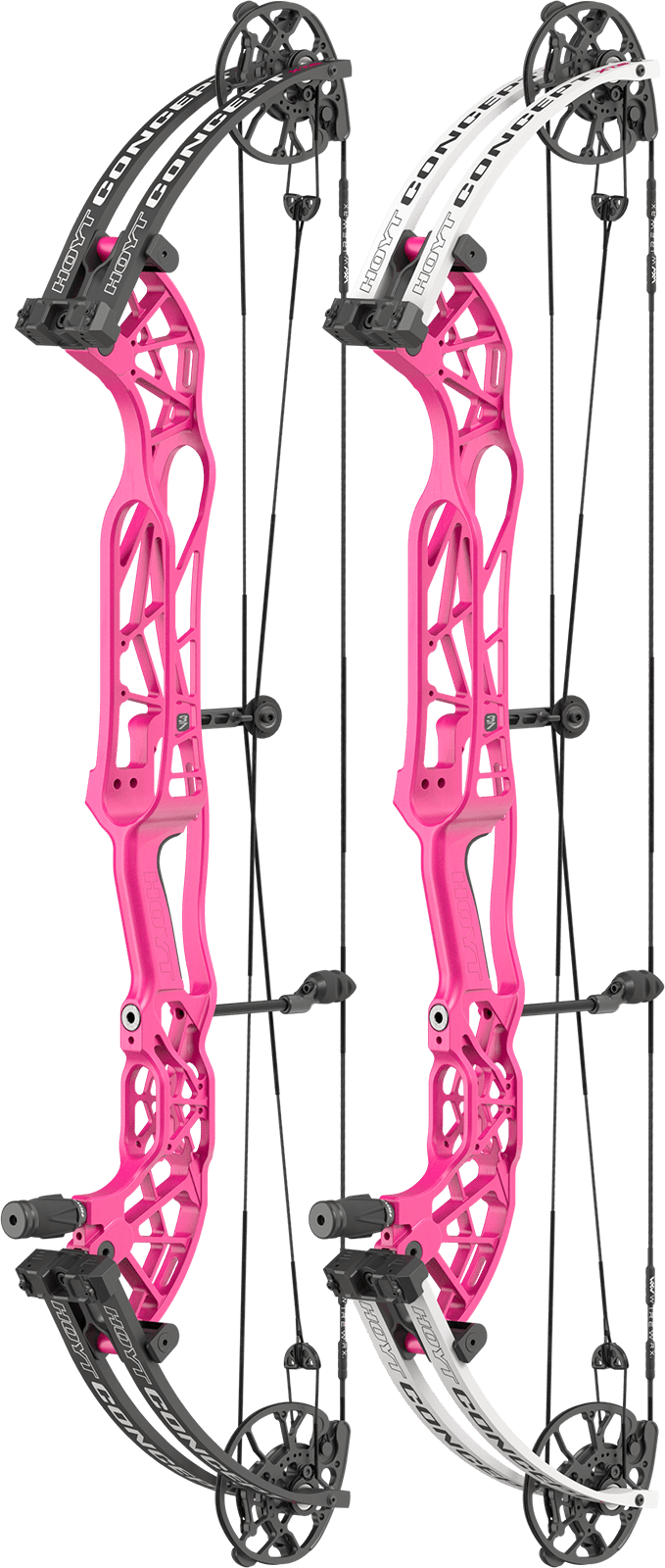

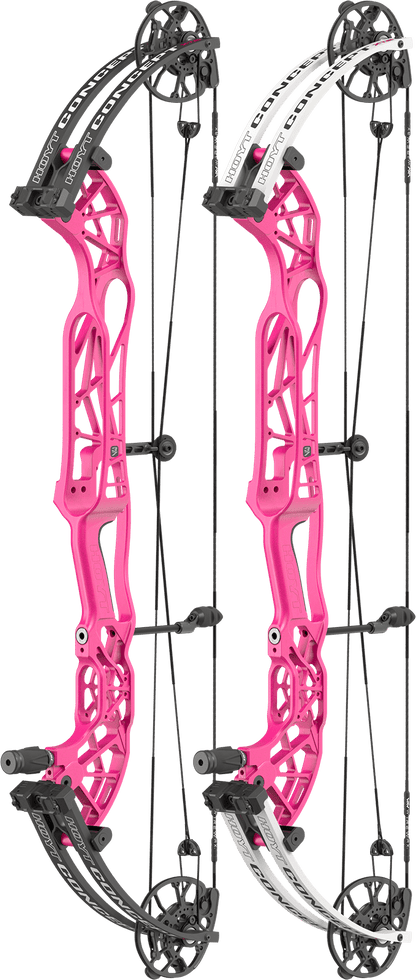

Concept XTS 37

Concept XTS 37

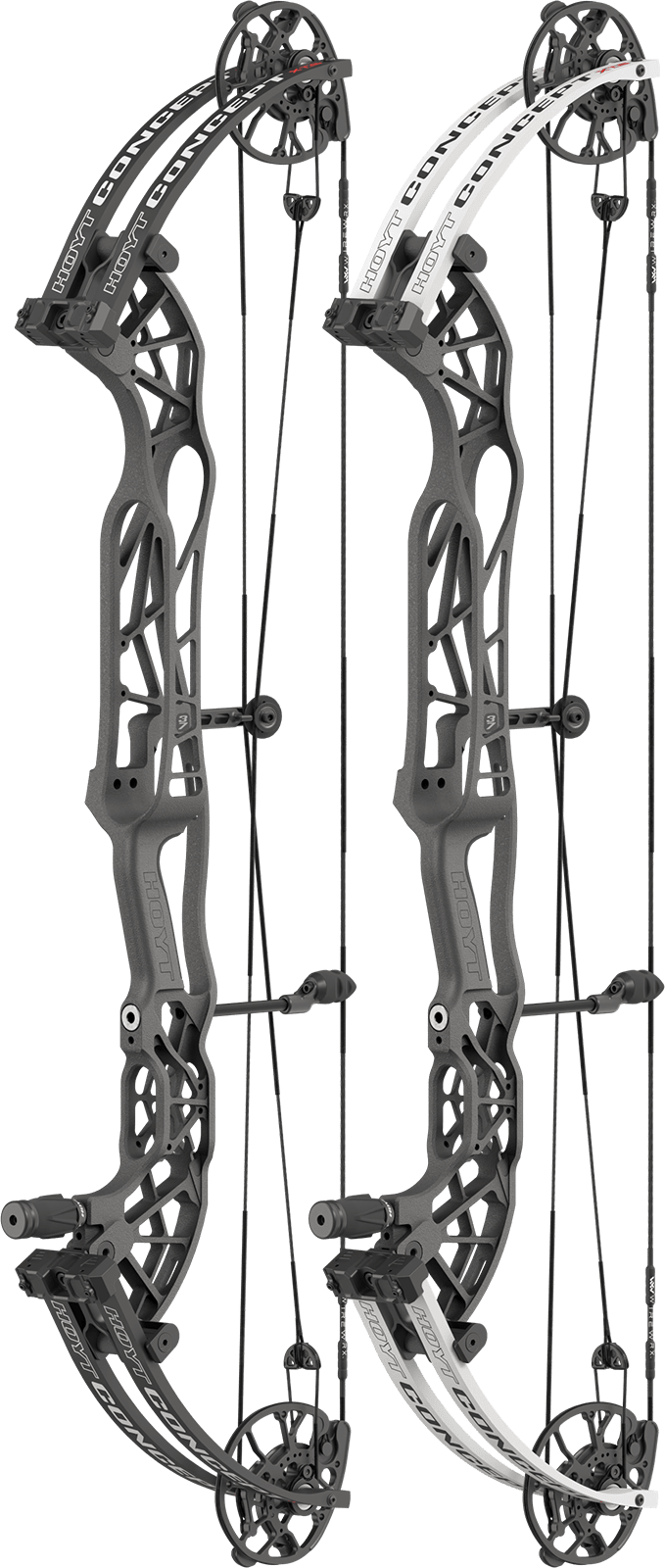

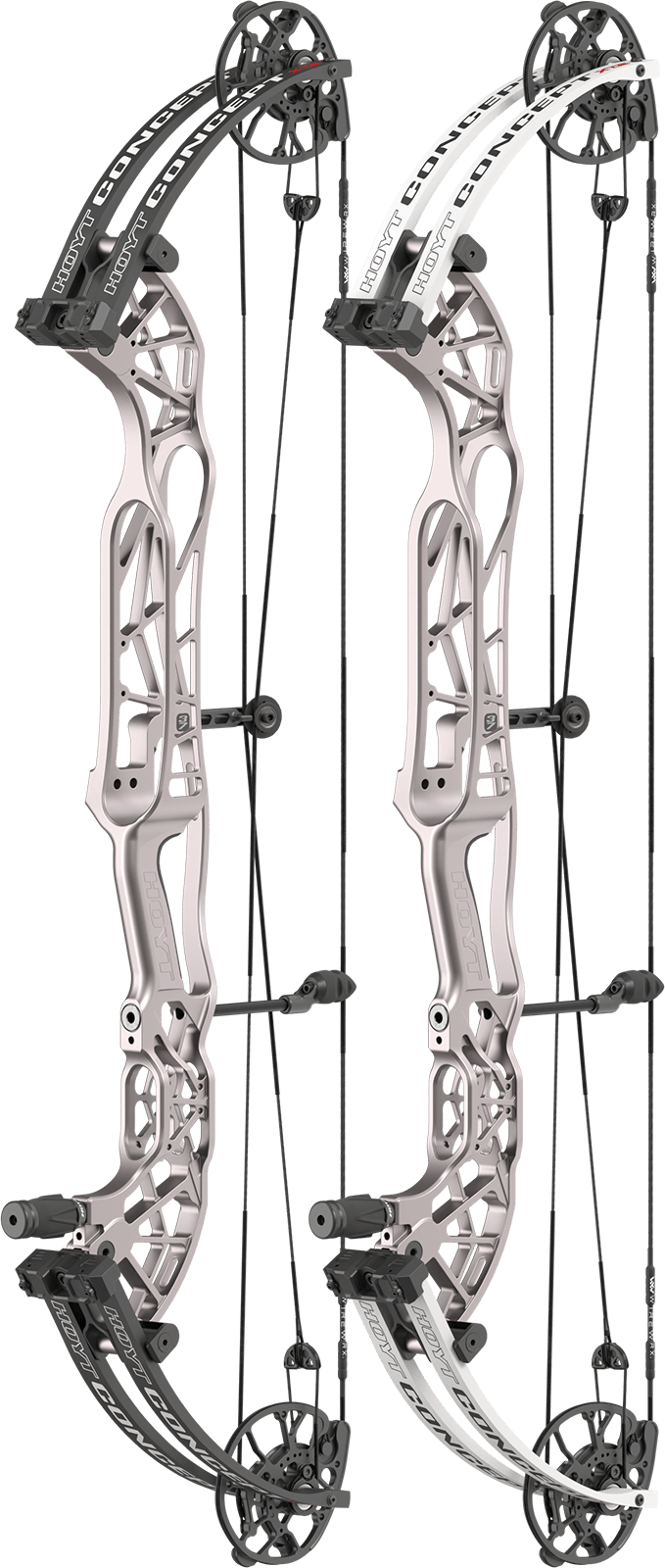

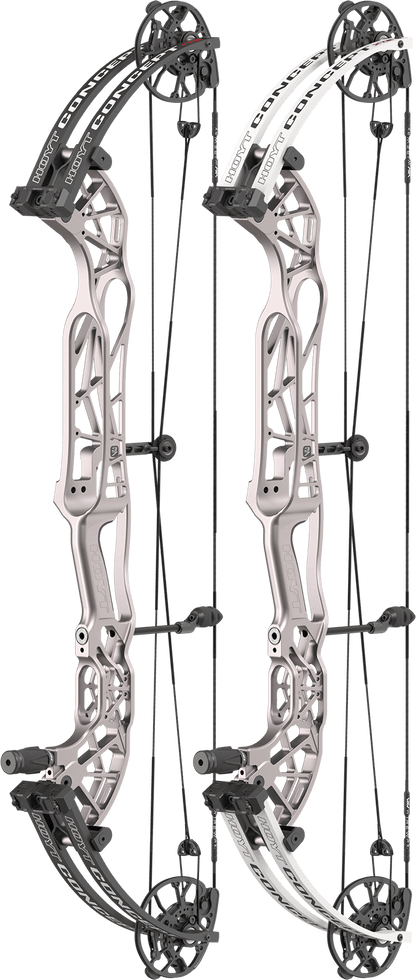

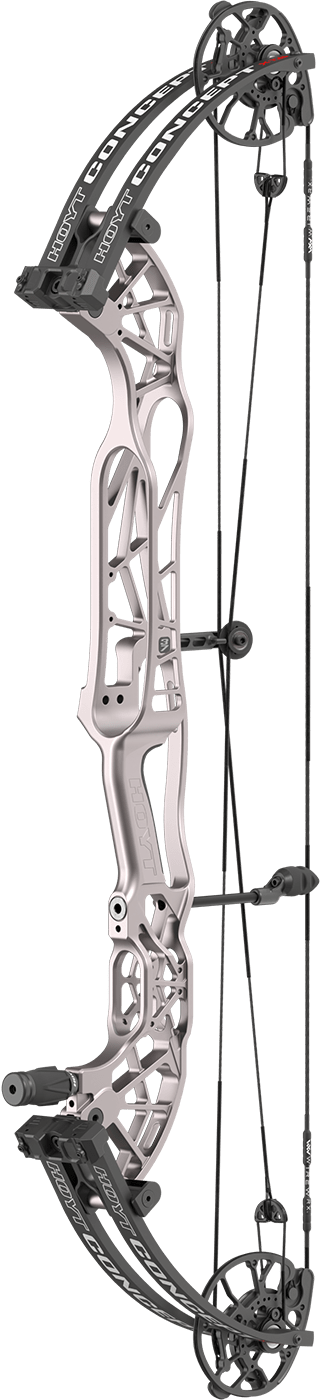

Color: Ti Silver
Concept XTS 34 Concept XTS 37 Concept XTS 40 Concept XTS 40 LD
334
FPS (ATA)
5.0
Pounds
37"
Axle-to-axle
7"
Brace height
26-29"
Draw length w/CDM mod
25-31"
Draw length w/spec mod
30-70#
Draw weight

The Concept XTS builds upon the instant success of the Concept X with sensible refinements and adds the XTS Tuning System - which unlocks a new dimension of tuning capabilities. With the Concept claiming Vegas and World Championship titles, adding the XTS Tuning System continues to stack the deck in favor of anybody who takes a Concept XTS to the tournament line.

The new SCTR 2.0 cam system results in a bow that is faster, and when paired with a refined riser it also becomes quieter and more vibration free. Just as important as the changes we made are the changes we didn't make - the overall geometry, aiming characteristics and feel stay the same. The already stellar Concept shooting experience just got better. This adds points to your scorecard.

The formula for this bow was simple - we took an already proven Concept and improved it. The Concept XTS is the next bow in Hoyt's long line of championship worthy performers.

View full details
The Concept

You don't rebuild the Gold Standard. You refine it.

The riser geometry proved ideal, the limb and cam system synergies were dialed in, and the total package was proven to have delivered the stability and feel needed to excel in the competitive archery arena.

Download Whitepaper
XTS Tuning System

The most significant addition to the Concept XTS.

The XTS Tuning System opens a new dimension to target archers seeking to maximize accuracy. From achieving a simple baseline tune quickly and easily, to fine tuning through the most technical of methods, the XTS system can work on every level at the most micro of levels. Archers who take the time to dial in their setup with XTS will see positive results on their scorecard.

XTS was originally deployed on the 2026 premiere Hoyt hunting line, proving its stability and durability in the world's toughest conditions — as well as remaining rock-solid even in our legendary dry fire torture testing, with 90+ pound bows.

Concept XTS highlights:

  • XTS Tuning System — Quick, simple and precise tuning, no press required. Unlike most systems that only fix left & right tears, XTS also corrects high & low tears. It can be used for paper tuning, bareshaft tuning, group tuning, fine tuning aim and holding weight, and more, all with total repeatability and precision.
  • SCTR 2.0 Cam System — A new and improved version of the SCTR cam, utilizing the same mods to maintain feel. The SCTR 2.0 is smoother at the front and end of the draw force curve, while storing more energy and producing up to 4fps more speed than the original.
  • New TDM module — A unified, rotating module covering positions A through E in ½" steps, for the archer on the long end of a draw length or seeking a more linear draw force curve. Backwards compatible onto the original SCTR cam.
  • CDM and Spec mods carry over — Utilizing the same mods allows archers to easily transition to their new bow, while also maintaining the feel at full draw, a critical piece of an archers familiarization with their bow.

Download Whitepaper
New Cam System

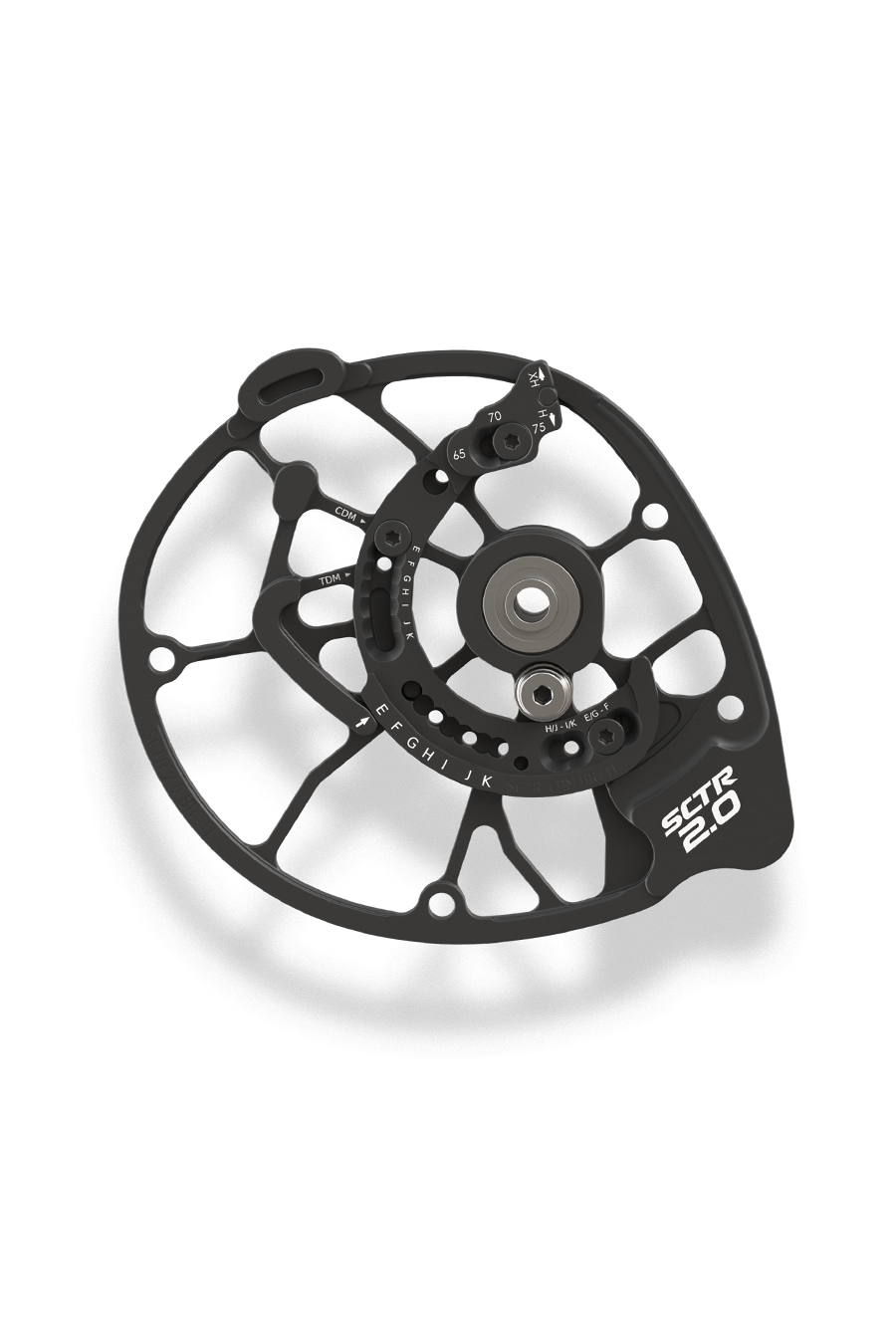

SCTR 2.0 Cam System

The SCTR 2.0 cam is the culmination of 24 years of Hoyt cam design that was the standard of target archery, creating a new benchmark in performance and feel.

The Drivetrain Of The Concept XTS

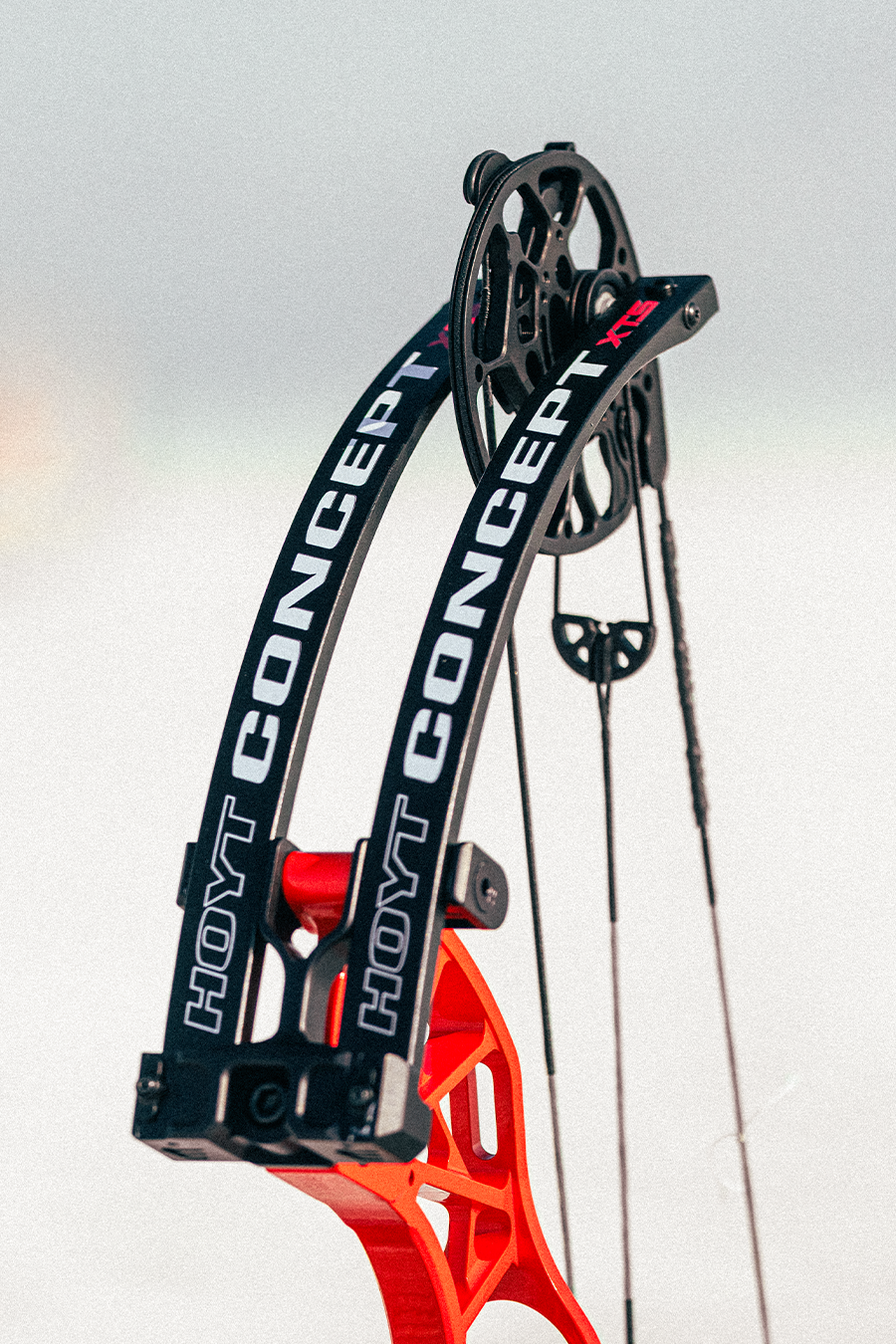

TXL Limb System

With proven all-weather performance, durability earned over two years of continuous refinement, and stability that holds under load, Hoyt's TXL limbs fundamentally carry over for the Concept XTS.

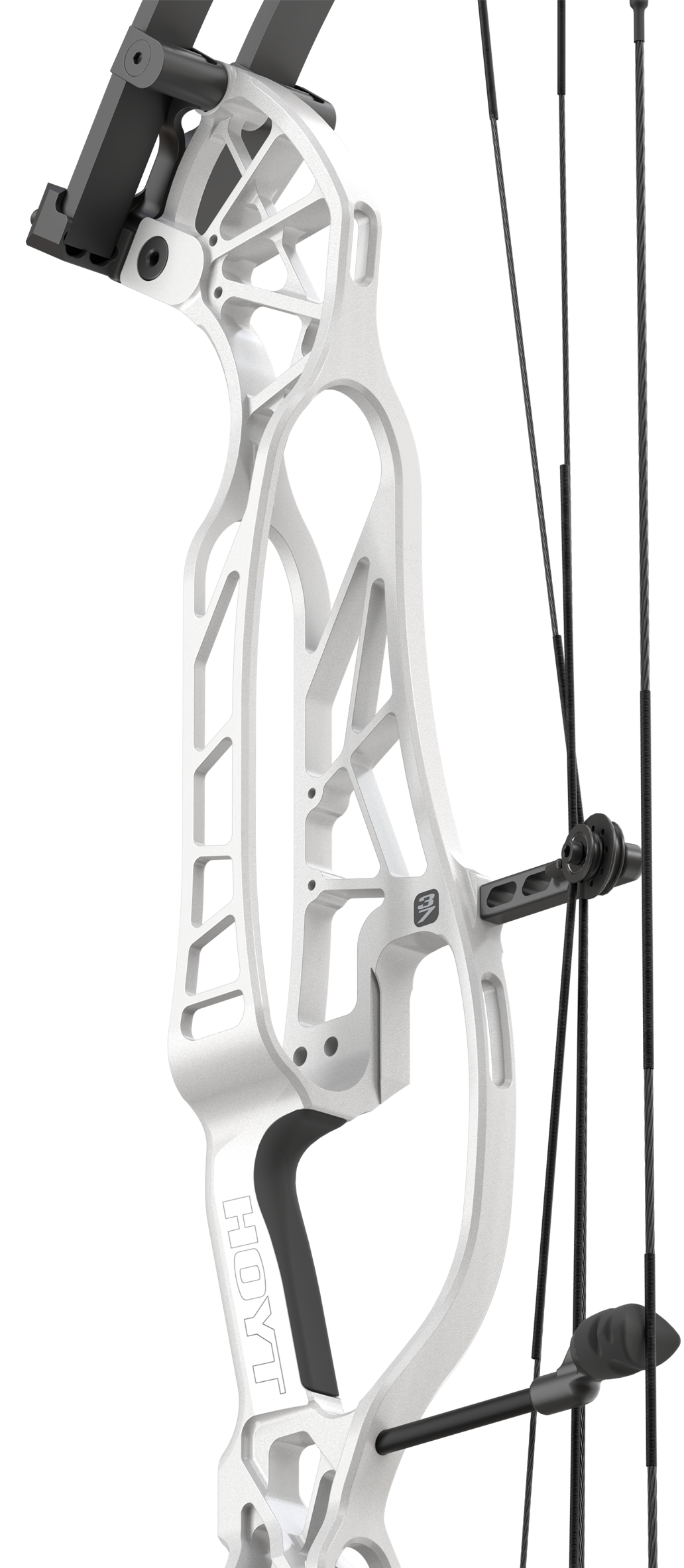

New Riser Design

Shoot-Through Riser

The Concept XTS is available in 34, 37 and 40 inch axle-to-axle models, joined by the 40 Long Draw for archers drawing 32.25 to 34 inches, with engineered improvements to the riser design to further optimize planar and torsional flex.

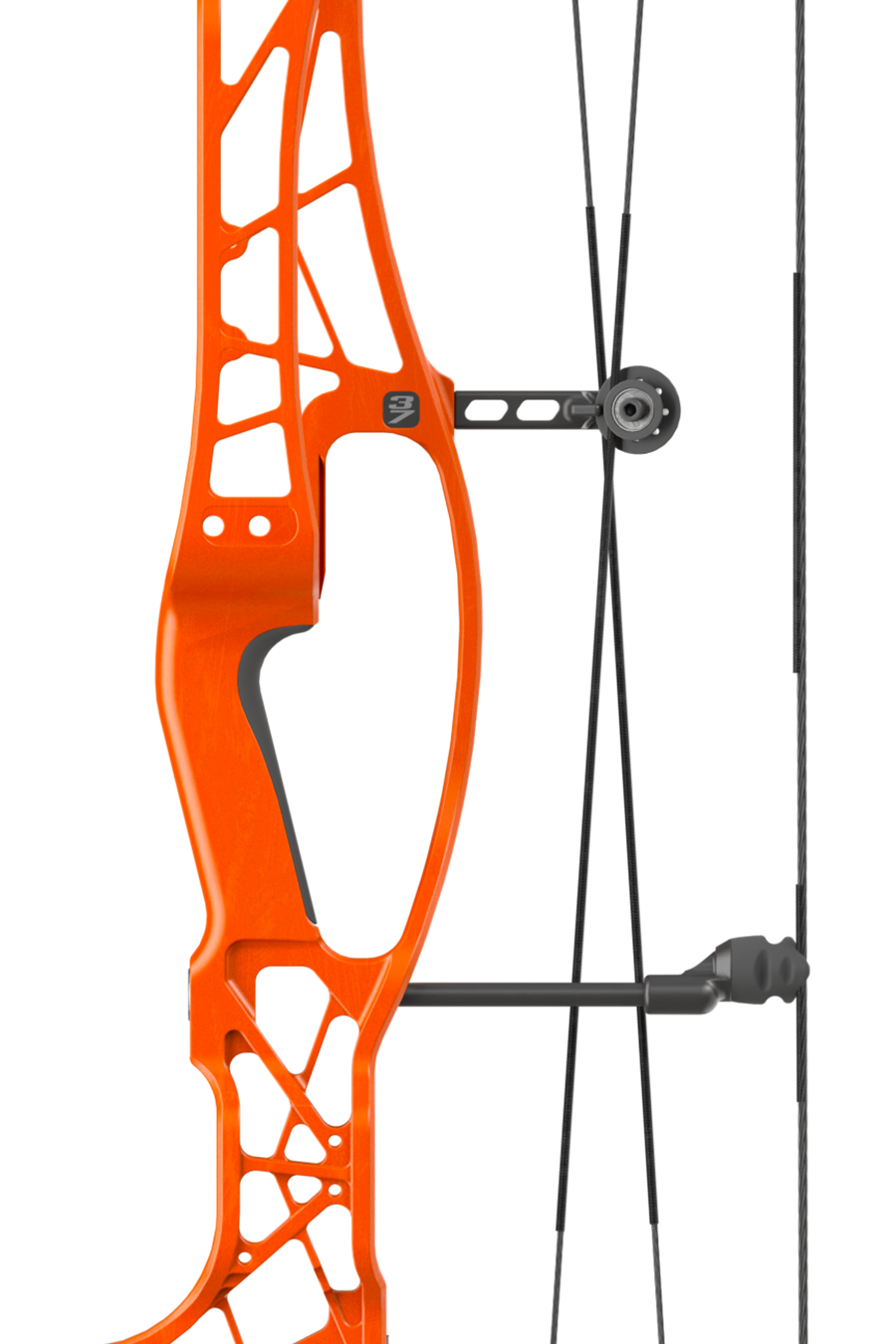

Modular Grip System

Fine-tune draw length without changing the tune of the bow.

The Concept XTS features Hoyt’s patented Modular Grip System. Grip plates are offered at 0°, +4° and +8°, and each angle is also available in a −1/8" draw length plate — letting an archer fine-tune draw length without changing the tune of the bow.

The modular grip system is fitted across the entire lineup, including the Concept XTS 40 Long Draw.

  • 0° standard, and 0° with a −1/8" draw length plate
  • +4°, and +4° with a −1/8" draw length plate
  • +8°, and +8° with a −1/8" draw length plate
0 Degree
0 Degree -1/8"
+4 Degrees
4 Degrees -1/8"
8 Degrees
8 Degrees -1/8"

WireWRX bowstrings

Our engineers designed WireWRX strings as part of the bow, and every Hoyt bow shoots better with WireWRX. It’s another example of Hoyt Engineering Synergy. Included on all premium bows and available after-market from your Hoyt dealer. Never settle for less.
